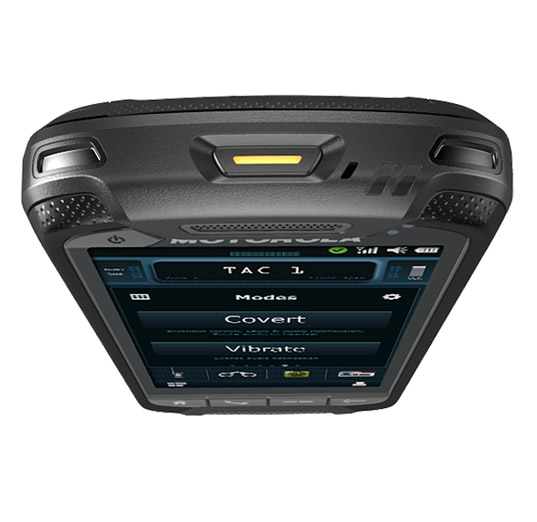

         Motorola LEX 700

Обратиться к менеджеру

Смотреть видеопрезентацию Motorola LEX 700

          Телефон для служб безопасности:

1.      Стандарты LTE, CDMA, 3G, 2G, EVDO и Wi-Fi.
2.      Поддержка Bluetooth 2.0, A2DP Stereo Profile и aGPS.
3.      Дисплей 4" WVGA (800 x 480), камера 8Mpix, USB 2.0, 3.5 mm audio jack, OS Microsoft Windows Embedded Handheld 6.5.3


          Беспроводная передача данных

     WLAN

•      802.11 a/b/g/n; 2.4 GHz operating band

     CDMA

•      EVDO Rev. A (Band 0, Band 1); 3G; 1X
•      Frequencies: 800/1900 MHz

     LTE

•      Release: 3GPP Release 8 (upgradable to R9) Band Class: 700 MHZ; Band 14 (Public Safety LTE); Band 13 (Verizon Wireless LTE)
•      Output Power: 23 dBm +/- 2 dB (UE power class 3) Bandwidth: 5 MHz, 10 MHz, broadband data throughput depends on network conditions

     Bluetooth

•      Bluetooth: Bluetooth 2.0 + EDR; max throughput 2.1 Mbps; A2DP Stereo Profile; Class 2
•      Mission Critical Wireless: Near-field (touch) pairing; low-frequency pairing; low-latency connectivity; 128-bit encryption

     GPS

•      Location services: Standalone GPS; assisted GPS (aGPS); E-Compass

          Технические характеристики

     Память

•      1 GB RAM
•      8 GB eMMC (max 4 GB addressable by operating system) Expandable to 32 GB with microSD™ card

     Operating system (OS)

•      Microsoft Windows® Embedded Handheld 6.5.3;
•      planned upgradeability to Android™ Open Source 4.0

     Audio

•      Supported formats: MIDI, MP3, WAV, Windows Media Audio (WMA) 10, WMA 9
•      Output: 3.5 mm audio jack (stereo); Bluetooth (A2DP stereo)

     Device software

•      Messaging: SMS/MMS; Email (Corporate Sync, POP3/IMPA, Push E-mail)
•      Web: Opera Mini™ browser 10; Internet Explorer® Mobile 6

     Processor (CPU)

•      1.0 GHz
•      Texas Instruments OMAP™ 4430
•      Dual-core ARM® Cortex™-A9 MPCore™ with Symmetric Multiprocessing (SMP)
•      Integrated POWERVR™ SGX540 graphics accelerator drives 3D user interfaces
•      Integrated Image Signal Processor

     Аккумуляторная батарея

•      1930 mAh (1x battery)
•      3860 mAh (2x battery)

     Video

•      Supported formats: Windows Media Video (WMV) 10, WMV 9; formats supported for playback, streaming and recording
•      Video Recording Quality: D1 (DVD quality); 720x480
•      resolution; 30 frames per second (fps)

     Управление устройствами

•      Software upgrades: Field-upgradable via OTASP (over-the-air service programming)
•      Remote management and configuration: Compatible with Motorola Mobility Services Platform (MSP) software;
•      planned support for OMA-DM (Open Mobil Alliance Device Management)

          Физические характеристики

     Dimensions (HxWxD)

•      175 x 72 x 19 mm

     Display

•      4" WVGA (800 x 480)
•      Capacitive, finger-driven touch screen
•      Damage-resistant alkali-aluminosilicate glass
•      Protective bezel

     Ports

•      USB 2.0 High-speed (micro-B interface)
•      3.5 mm audio jack (stereo)
•      Accessory/charging port

     Weight

•      With 1x battery: 233 g
•      With 2x battery: 280 g

     Camera

•      8 megapixels
•      Auto Focus
•      High-Output LED Flash
•      Digital Zoom
